From the Field to the Shop, We've Got You Covered For MWD Products
MWD Field Equipment Products

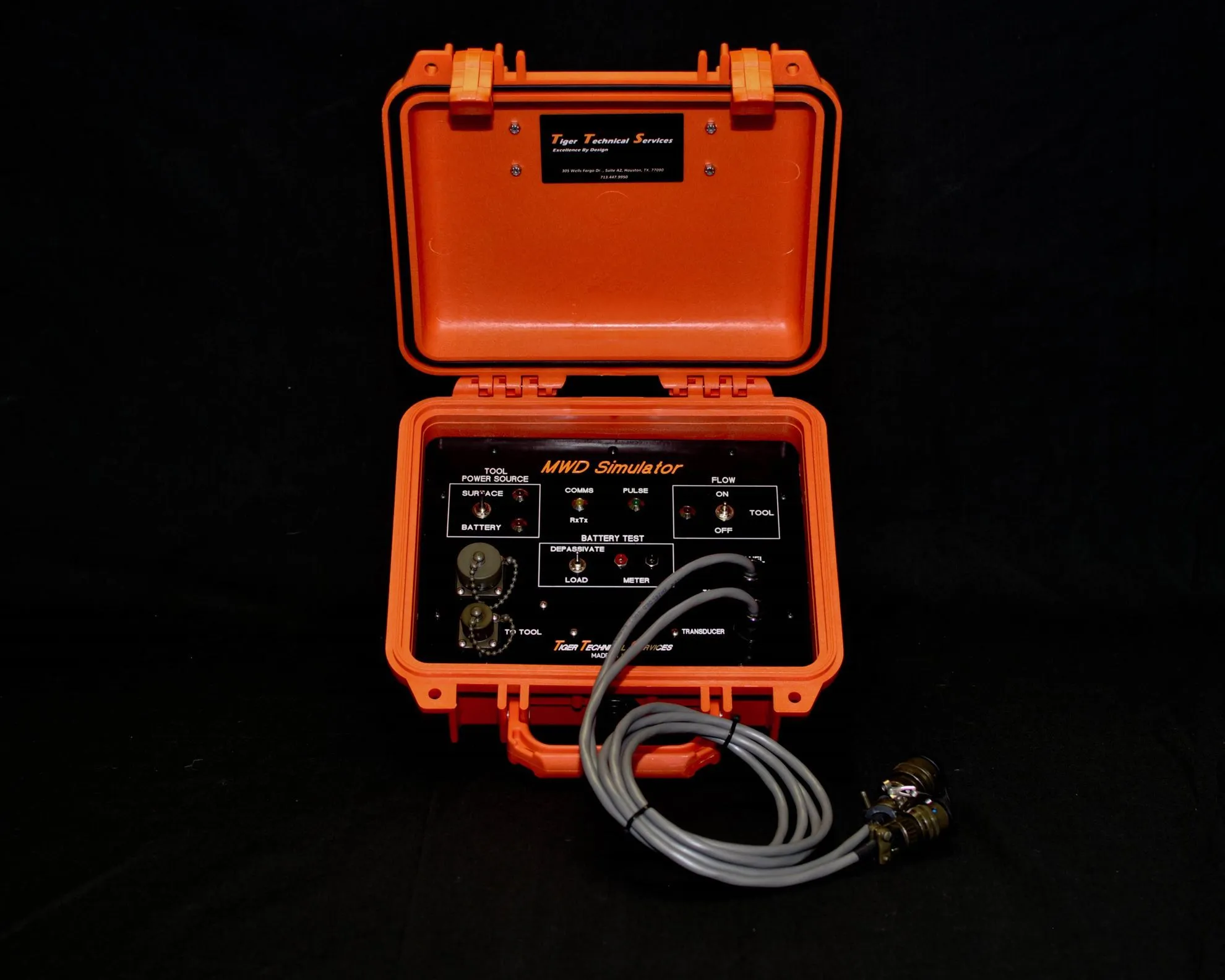

Flow Simulator Box
SKU: 100305
The MWD Flow Simulator is an interface between the MWD tool string and the surface decoding system to allow surface testing of the tool and surface gear.
- Simulates flow on/off conditions by manipulating the flow line. (this function does not work with an XXT pulser driver attached to the tool.)
- Simulates static standpipe pressure with flow on condition
- Converts 5v pulses from the tool to 4-20ma signal to simulate down hole pulsing (50psi pulse height) to allow full decoding of data from tool string.
- Visual indication of Pulse/Flow state and RxTx communication status
- Powered from Battery on tool or through the surface system.
- Load test and depassivate battery with jacks for DVM.
- Ruggedized construction for field use.
CAN BUS Tool Programming Box
SKU: 100311
Rugged version of the CAN Interface box designed specifically for use with JAE tools but will work for any device using CAN bus protocol. Highly durable and water resistant. Box comes with a cable to interface to the tool bus via MDM15P connector or a cable of your specification which may incur an additional fee.
Comes in single port only.
- Provides 28VDC up to 2.8A current for tool power
- Contains a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus
- 8000 messages per second, each time-stamped with 100 microsecond accuracy
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
- Galvanic isolation enhancing protection from power surges or electrical shocks
- Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC
- Comes with 36" cable with MDM-15P connector to interface to common MWD tool connections
- Built in resettable circuit breaker for protection
- Dimensions 9” x 7” x 4”
- Weight 2.8 Lbs.
- Works with 110-265vac 50-60Hz power

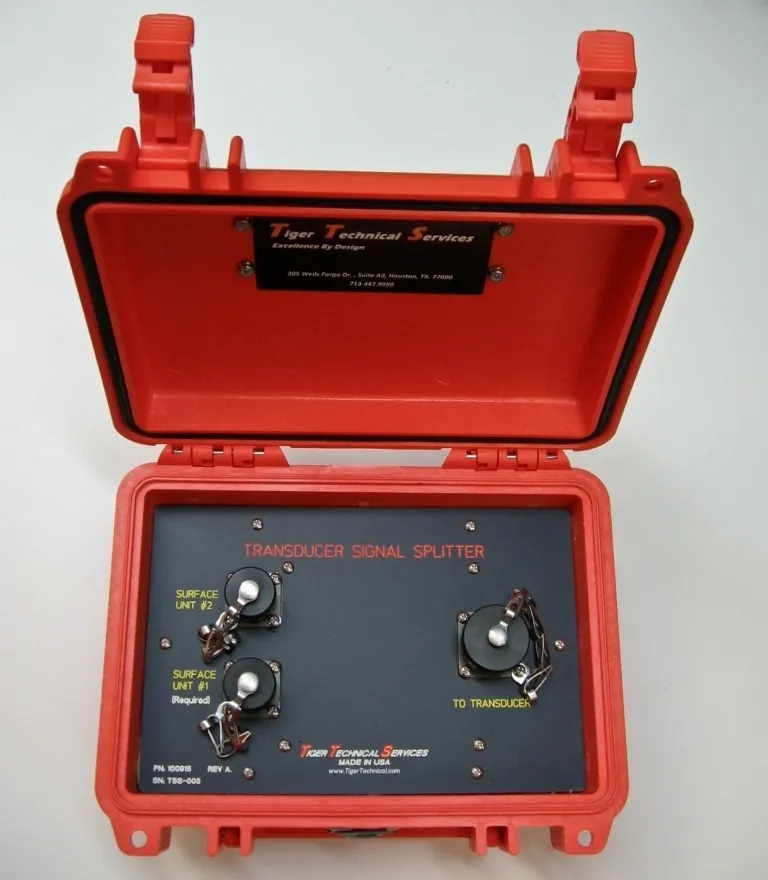

Transducer Signal Splitter
SKU: 100915
The transducer signal splitter allows the use of two separate surface systems or decoding units to be used with a single 4-20ma transducer. The device acts like a "Y" cable splitter. Designed to use standard rig transducer cables common in MWD surface systems with a 19P connector on one end and a 6S connector on the other.
Rugged water resistant design for rig/outdoor use.
No external power supply required, runs off of power normally supplied to the transducers by the surface systems.
(Unit includes two 3' cables to connect to surface system)
0-10K psi range.
Isolated outputs for hazardous environment use.

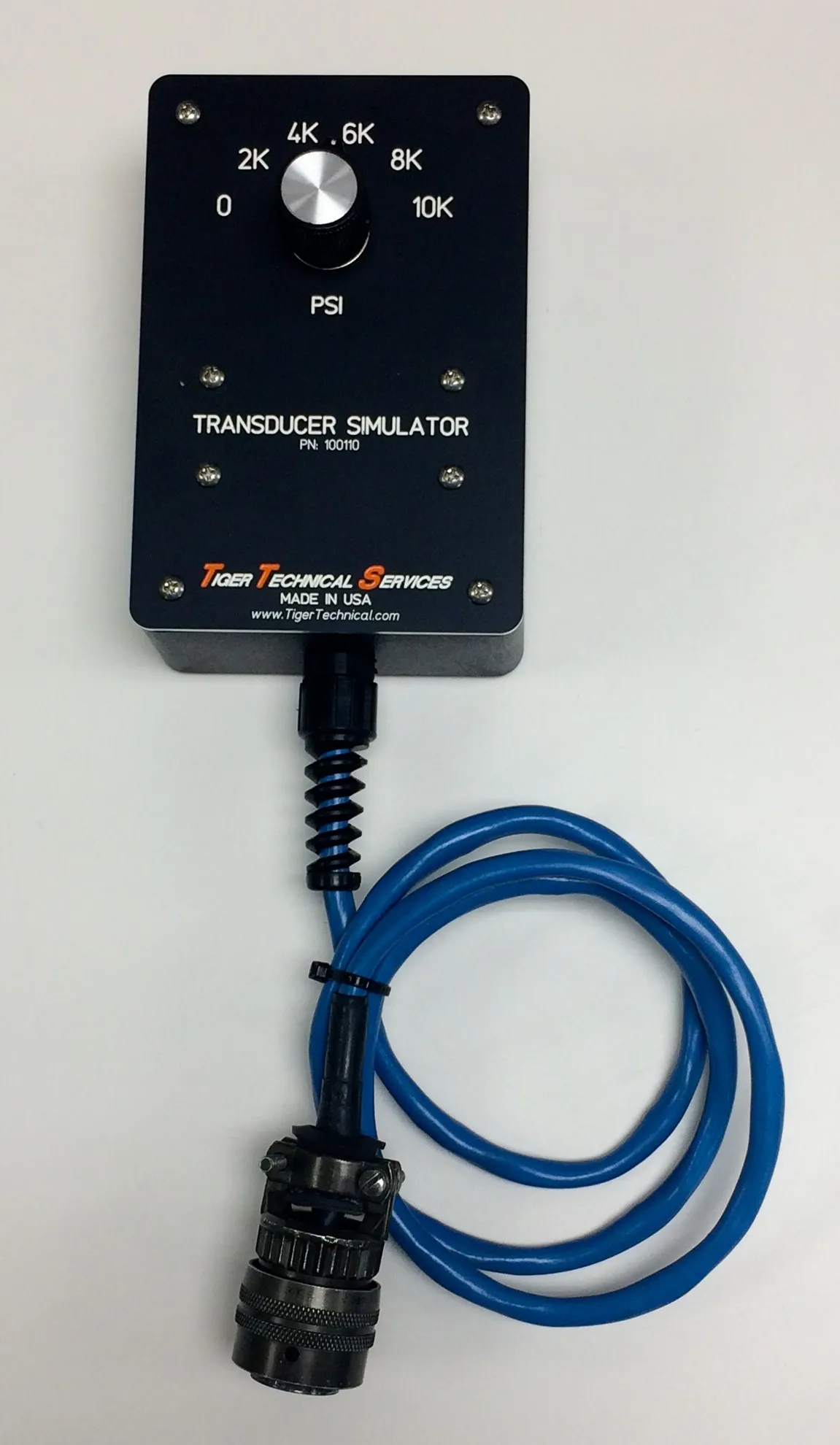

Standpipe Transducer Simulator
SKU: 100110
The Transducer simulator frees the technician from having to use a hydraulic pump and a real pressure transducer assembly to test the pressure input on surface decoding systems. Repeatable inputs over the entire pressure range are now available for consistent and through testing.
- Eliminates hydraulic pump and pressure transducer
- Increases safety by removing high pressure systems from the bench
- Provides repeatable inputs
- Tests over entire range of pressure

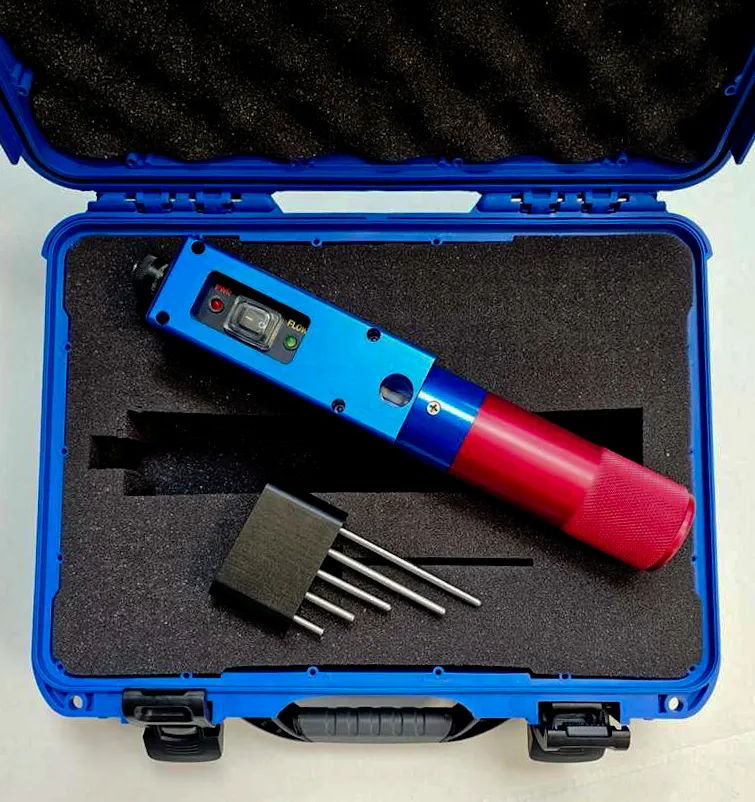

4-20ma Pulse Translator Module
SKU: 200205
This module screws onto a poppet valve style pulser and translates valve movement into a 4-20ma signal to use for decoding and pulser operation verification.
- Requires no external power source.
- Flow On/Off switch provides a flow-on standpipe pressure and approximately 1K psi pulses with full travel.
- Power and Flow indicator lights.
- Recessed switch to prevent breaking of the switch.
- Comes with a 12' cable but will also plug directly into a standard transducer cable.
- Durable solid aluminum and stainless steel design with thread protector included.
- Water resistant design.

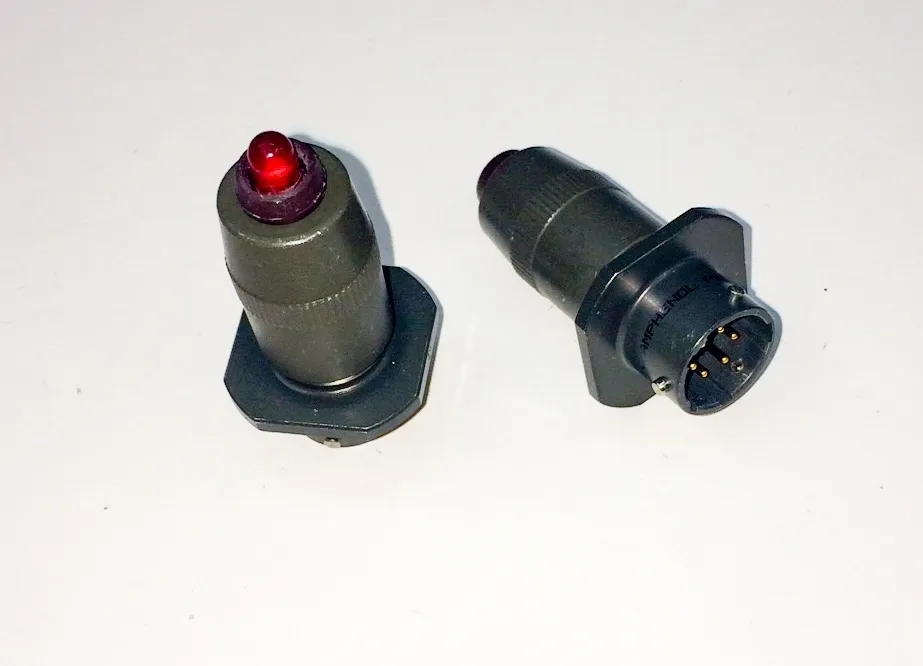

Transducer Cable Test Plug
SKU: 100200
This plug is designed to assist field operators in determining if their transducer is working or if the cable is working. Plug this into the transducer cable in place of the transducer. The LED on the plug should light and the surface system should read approximately 5000 psi. Durable water resistant construction.
MWD Shop Equipment Products

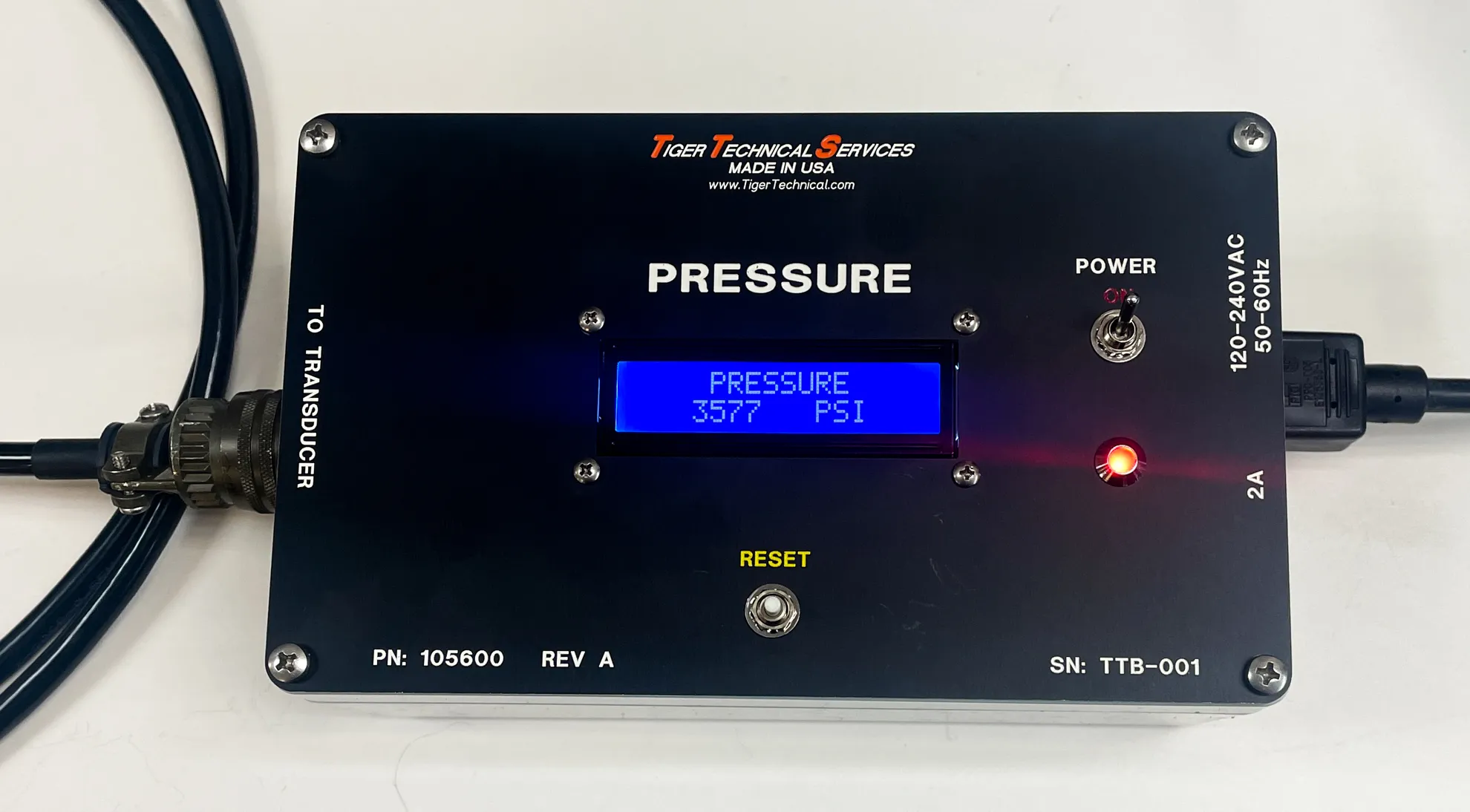

4-20ma Transducer Test Boxes
SKU: 105600
This box will allow you to test your 4-20ma transducers without the use of a surface system or RFD/decoder.
- Integrated 24v power supply
- 6' standard transducer cable included
- Simple to use
- Calibrated for 0-10K PSI
- Requires 110-240v 50/60Hz

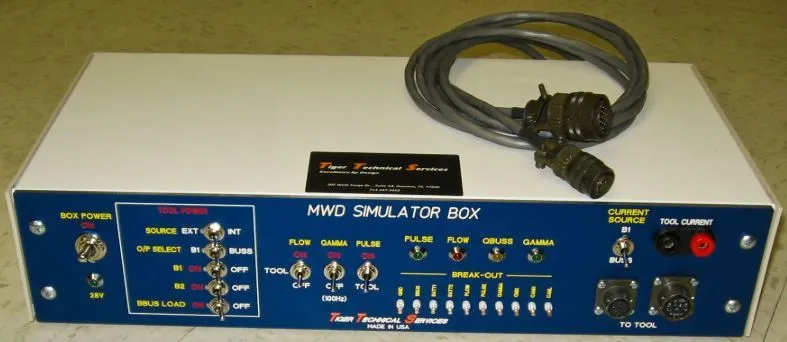

MWD Tool Test Box
SKU: 100306
The MWD Tool test box is an interface between the MWD tool string and the surface decoding system to allow surface testing of the tool and surface gear.
- Simulates flow on/off conditions by manipulating the flow line
- Simulates static standpipe pressure with flow on condition (5000 psi)
- Converts 5v pulses from the tool to 4-20ma signal to simulate down hole pulsing (50psi pulse height) to allow full decoding of data from tool string.
- Visual indication of Pulse state and RxTx communication status
- Powered from internal power supply (28v) or from an external power supply/Battery via the rear banana jacks
- Battery 1 and Battery 2 external inputs
- Built in Gamma signal simulator (100Hz)
- Built in Pulse signal simulator (.5Hz)
- Available with 2nd power supply for Battery 2 input. (Requires purchase of B2 POWER SUPPLY option 100307).
- Available with integrated USB-CAN bus interface integrated into the 10 pin connector with a USB port on the rear panel. (Requires purchase of USB-CAN option 100308)
FOR B2 POWER SUPPLY OR USB-CAN OPTION:
- Add MWD Tool Test Box to cart
- Add B2 POWER SUPPLY option or USB-CAN option to cart.

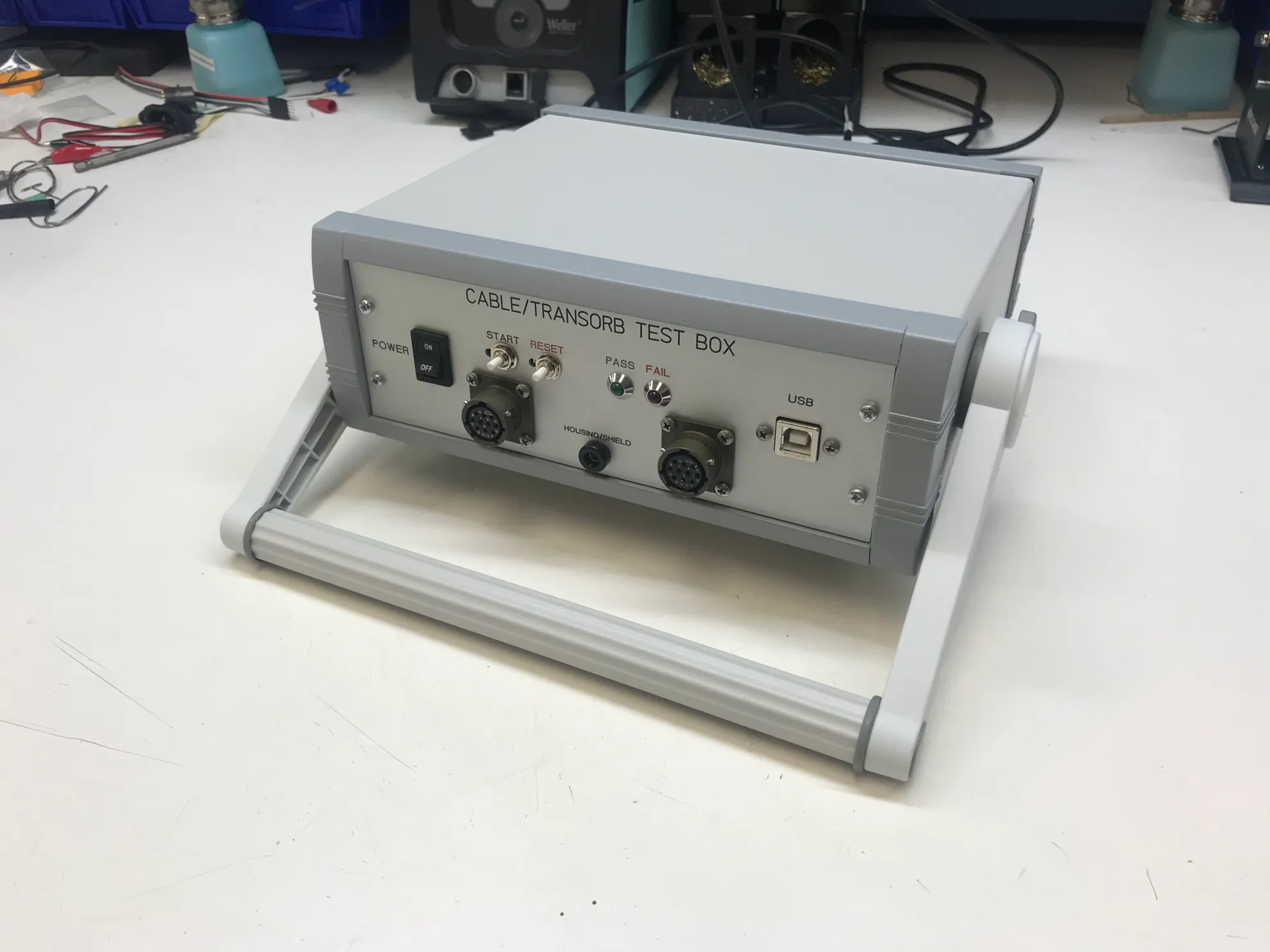

Cable/Diode Module Tester Bench Top with Software
SKU: 100601
This new bench top design along with the accompanying software will allow far easier and faster testing of Tandems, Cables, and Dioode Modules along with providing a record of the test if desired. It will enable you to test the full functionality of your diode protection modules as well.
This equipment is designed to test up to 10 lines of conductors for shorts, opens, poor connections and shorts to a shield or housing. The unit will also test up to 6 TVS diode protected lines to determine breakover point and detect open or shorted lines.
Using different adapters, this unit can test any cable or assembly up to 10 conductors. Windows based interface software will allow custom configuration for any cables you have.
Requires 120 or 220vac power.
Several failure modes are tested:
- Open connections – broken wires, solder connections, or connector pins.
- Shorted lines – one or more lines shorted to another.
- Poor connections – frayed high-resistance wires, poor solder joints with high resistance, worn connector pins causing high resistance connections.
- TVS diode open – no protection present on a line due to an open or defective TVS diode.
- TVS diode breaking over past specifications – essentially no protection on a line due to TVS diode break-over point being far too high.
- TVS diode breaking over too soon – interrupted function of the tool due to TVS diode breaking over far below specifications causing logic or communication errors, pulsing problems or even no flow sensing.
- Checks lines shorted to a housing or a shield.

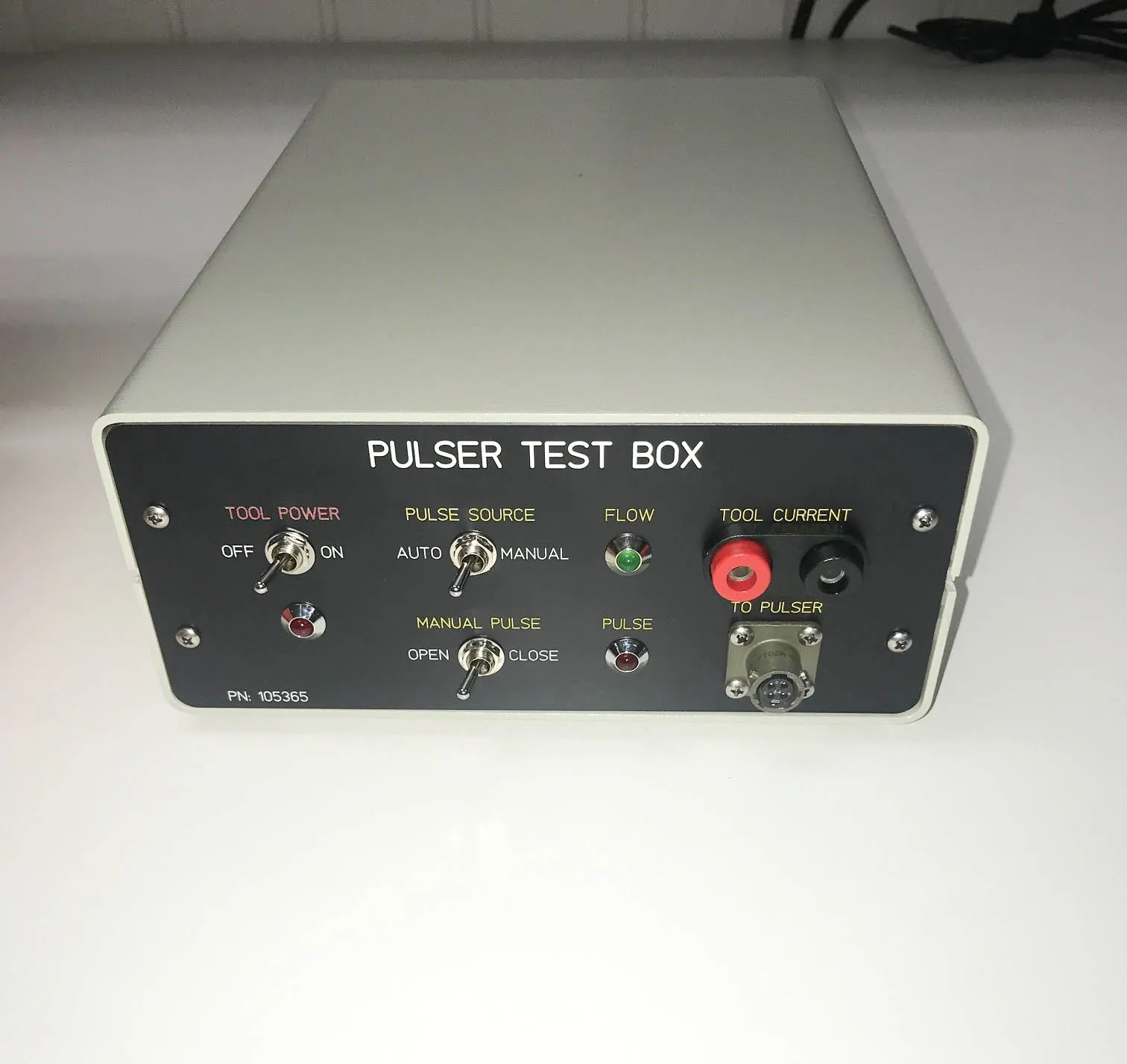

Pulser Test Box
SKU: 105365
The Pulser Test box allows you to control your MWD pulser without the need for a tool connected to the pulser unit. It provides power and a pulse signal to actuate the valve. It displays the status of the FLOW line output from the pulser as well. The pulse signal can either be automatic (1Hz) or manually controlled with a switch.
Current draw can be monitored using an external volt meter.
Requires 120vac or 208vac 50/60Hz. Comes with one cable (does not include rotatable connectors).

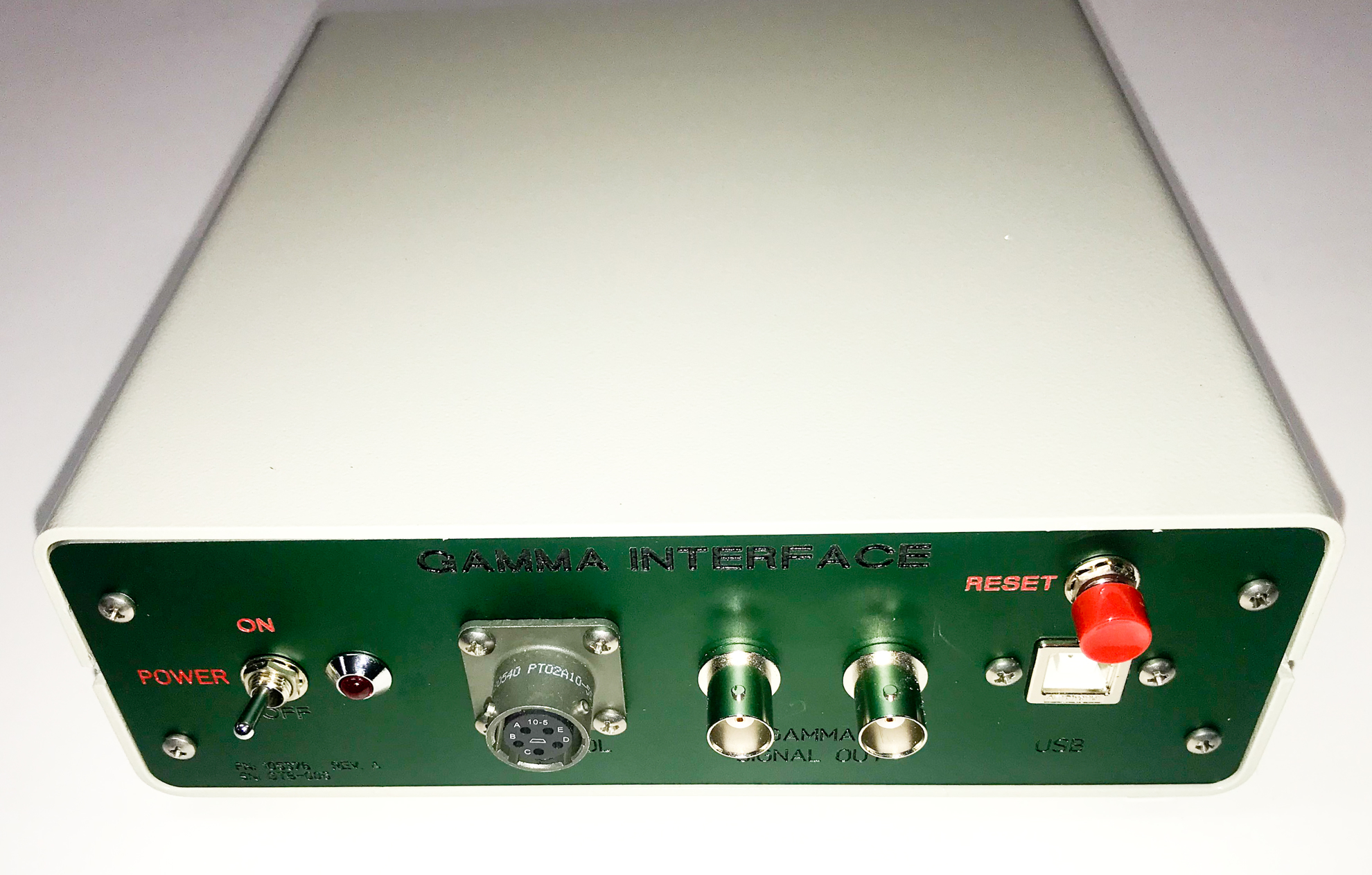

Gamma Module Calibration System
SKU: 105376
This equipment is designed to provide a calibration factor based on your specific tool response and your API certified calibration source.
The system comes with a downloadable application that provides a user interface for all testing performed. Compatible with Windows 7 & 10 systems only.
The system also comes with a cable made to fit your tools and is included in the price with the exception of rotary connectors. Those will incur an upcharge depending on requirements.
The API source is not included in this system.
- Allows user configuration for each specific source used. This is stored in a local file and will be loaded each time the application is run automatically after saving.
- Provides a calibration report when the process is complete which is stored and is accessible for future use as well as printable.
- Test data and report data are both stored in log files for future analysis or proof of calibration later. This data is easily managed and viewed from the application interface.
- Includes a temperature sensor log and display during calibration.
Monitors and logs supply voltage as well as tool current draw during calibration. - Has an on-screen graph of data sampled for easy visualization during calibration.
- Provides 2 built-in BNC connectors with buffered gamma signal to attach an oscilloscope and/or frequency counter.
- Integrated 28vdc power supply.
- Includes a “test” mode which displays current data for an infinite amount of time for just testing tools. You can use this to quickly test a tools function without doing a calibration.
- Allows you to upload your company logo for use on reports.
Easy to install, no configuration parameters or calibration of the interface box at all.
The unit requires 110-230VAC 50-60Hz power.
A maximum power output of 1.6A is supplied by the interface box.

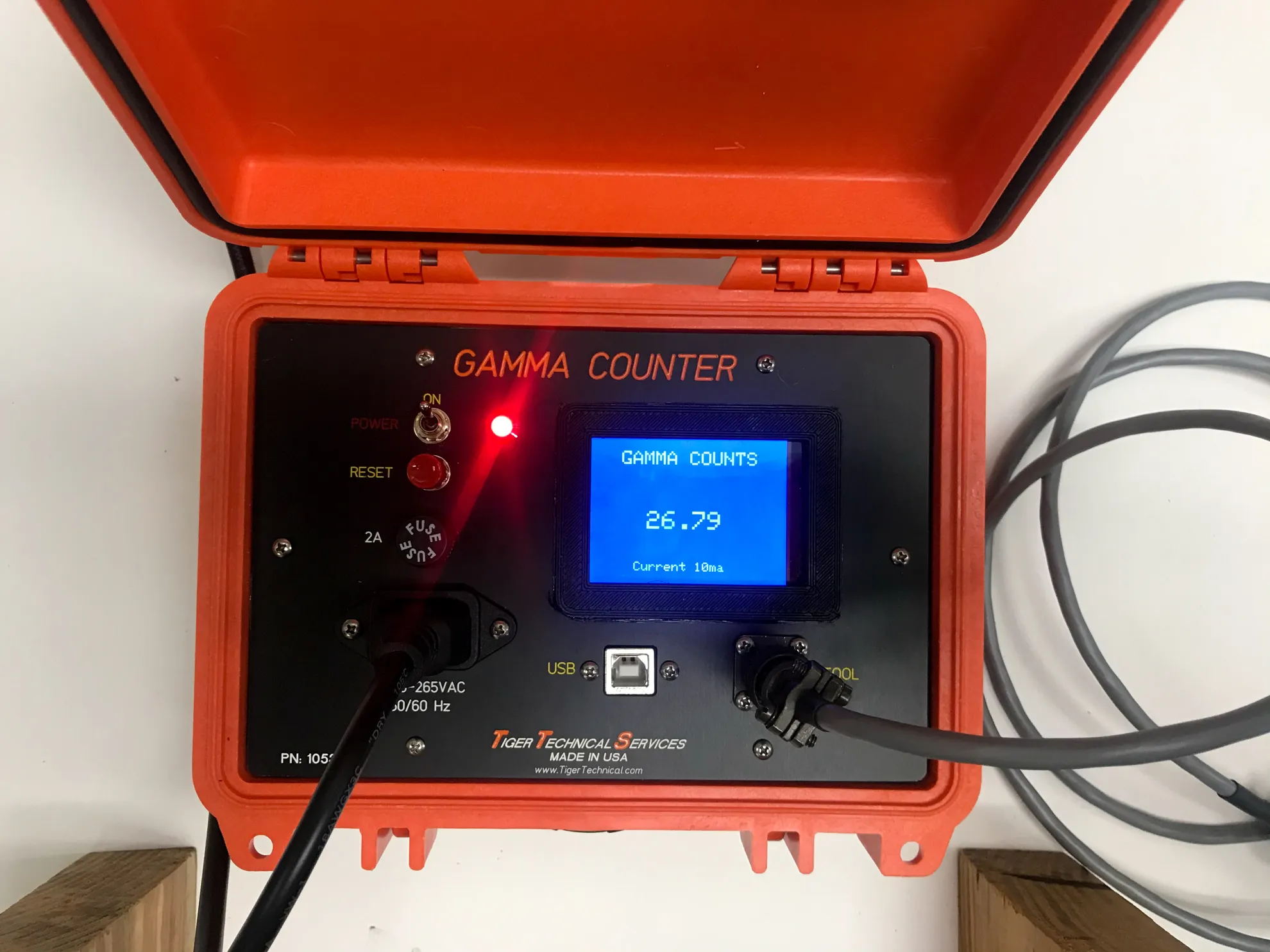

Gamma Module Test Box
SKU: 105375
The Gamma Module Test Box allows the user to connect a Gamma module stand-alone without using a Directional module to obtain counts.
This unit displays the current draw of the module as well as a 20 second rolling average of the gamma counts, it takes 5x 4 second buckets of average readings and updates every 4 seconds.
Integrated power supply.
Large easy to read TFT display.
Requires 120 or 208VAC 50-60Hz.

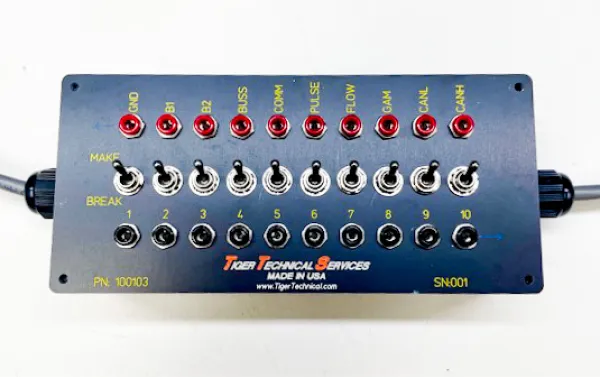

Break-out-Box
SKU: 100100
This unit has pin style jacks to allow use of DVM probe tips directly.
Line assignements for the standard 10 conductor MWD tool bus are marked on the box for easy reference.
Toggle switches on each line allow make or break measurements.
Available with any connectors desired.
The price for these varies due to the cost of required connectors.

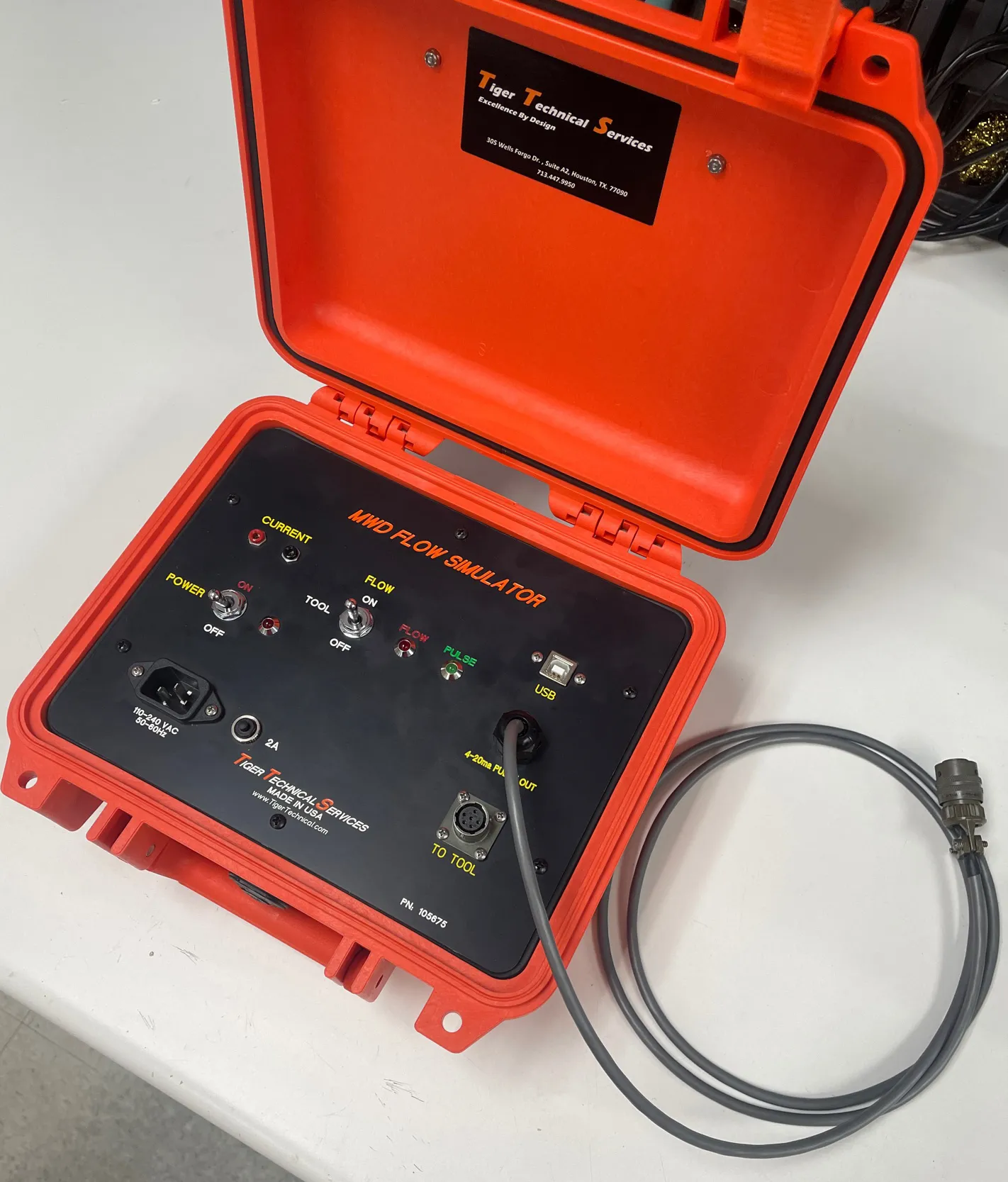

Programmer/Flow Simulator
SKU: 105675
This box simplifies your bench setup and allows you to control the flow line, decode pulses directly to your Display/Surface system,
monitor tool current, supply power, and program the tool all in one.
- Displays Pulse status with a green LED
- Displays Flow line status with a red LED
- Allows user to control FLOW on/off
- USB-CAN converter built in for programming
- Allows user to monitor tool current with a DVM via 2 probe pin-style jacks
- Translates 0-5v pulse signal to a 4-20ma current loop signal for surface system to decode pulses from the transducer port
- Tool may be powered by battery or from the box
For use in the shop or in the field.
Pricing does not include the interface cable required for your tool type.
Requires 110-240vac 50-60Hz
